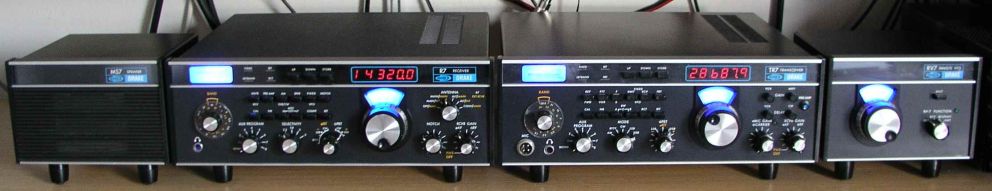

Modifications of my Drake Transceiver TR7 and Receiver R7

Description of modifications to increase the output on 10m up to the nominal value of 100W

TR-7 Full_output.pdf (0.7 MB)

Description of modifications to reduce the BFO-leakage

TR-7 BFO_leakage.pdf (0.4 MB)

Description of a DAFC for a better frequency-stability for TR-7, R-7 and RV7

DAFC-deLuxe.pdf (englisch) (0,4 MB)

DAFC-deLuxe.pdf (deutsch) (0,4 MB)

Replacement of an old rubber-bushing in the PTO-gear for TR-7, R-7 and RV-7:

7-Line Rubber_Bushing.pdf (english) (0,1 MB)

Blue LED´s for TR-7, R-7 and RV7:

BlueLED_Drake.pdf (english) (1,0 MB)

New AMP-Connectors for the DR7:

DR7-AMP-Conn.pdf (english) (0,3 MB)

New Trim-Pots for the R7:

R7-Trim-Pots.pdf (english) (0,1 MB)

Inrushlimitation for the PS-7:

PS7-Inrush.pdf (english) (0,3 MB)

Interconnection-cable TR7 - R7:

TR7-R7-cable.pdf (english) (0,1 MB)

Modification of RX-Audio-Response for 7-Line:

7-Line-Audio-Mod.pdf (english) (0,6MB)

5Spice Models for AF-Circuits (ZIP 12kB)
These models run also in the unregistered DEMO-Version of 5Spice, values can be changed but not saved.
For details please check on www.5spice.com

RX-Preamplifier for the TR7:

TR7-Preamp.pdf (english) (0,3 MB)

Illumination of the MN-7´s Tuner - scale:

MN4_MN7-Illumination (0,3 MB)

Unwanted PBT-Oszillation of the R7; Solution of problem:

R7-PBT-Oszillation.pdf (english)

Modification of AGC "FAST" in the R7:

R7-AGC_FAST.pdf (english)
Output for a Panoramaadapter in the R7:
R7-Panorama-adapter.pdf (english)
Frequency scheme (Excel-sheets) for 7-line:

        7-Line-Frequ_scheme_DL7MAJ.xls
            Calculates all internal oscillators for settable input- and PTO-frequencies
